LC15Dx – Closing the gap with tactile probe accuracy
The LC15Dx captures the smallest of details with highest accuracy providing valuable insights for components ranging from small airfoil blades to intricate sheet metal parts.

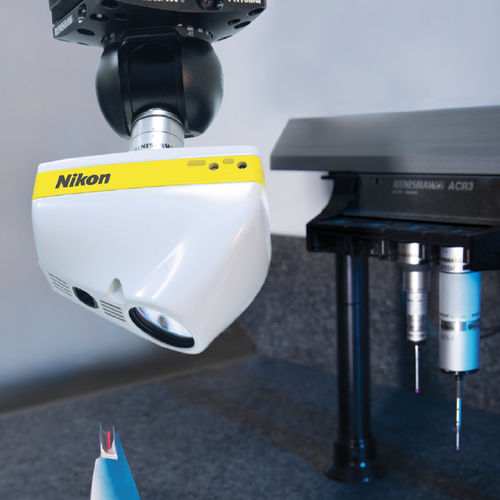

The LC15Dx CMM laser scanner provides non-contact measurements at the highest accuracy level
In terms of the precision with which data is acquired, the performance of the LC15Dx CMM laser scanner is close to that of a tactile probe. The scanner enables measurement at the highest accuracy level, offering fast and detailed insight for quality control of components ranging from small, complex aerofoil blades to intricate sheet metal fabrications. Even flexible and fragile parts may be inspected accurately and without damage.
Due to custom-designed, top quality Nikon optics, the cost-effective scanner captures the smallest detail with high precision while maintaining speed and data quality. It does this by optimising the laser settings in real-time to match the type and reflectivity of the material, without the need for surface preparation.
Product overview
Nikon Metrology’s LC15Dx laser scanner extends the capabilities of a traditional CMM with the ability to capture the complete geometry of a component or assembly in a non-contact and automated way, providing valuable information about the manufacturing process.
Number of axes : 3D
Applications : CMM, profile
Technology : laser
Other characteristics : high-resolution
Width : 18 mm (1 in)
