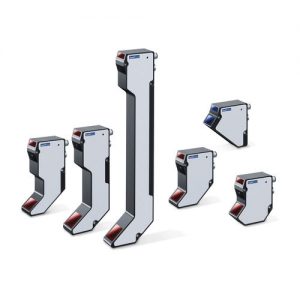

The ConoPoint-3 is a robust and high precision optical conoscopic holography sensor, for distance, surface contour, 2D profile, thickness and 3D measurements. The ConoPoint-3, a distance measurement sensor, is collinear and is capable of object coverage ranging between 1-200mm.
Capabilities
High Precision – down to sub-micron precision.
Angular coverage – up to 170° wide angular range coverage in all directions.
Collinear (co-axial) sensor – the laser beam is emitted and received in the same axis with no triangulation angle, allowing for measurement of holes, grooves and other deep concavities in a ratio of up to 1 (diameter) to 10 (depth).
Measurement speed – robust measurement frequency of up to 3000Hz.
Optional interchangeable objective lenses easily replaced by the user, enabling various working ranges on the same sensor.
Calibration data storage for up to 31 different calibrations.
Multiple sensor integration option – operation of several sensors simultaneously on one PC, using one hub, without any additional hardware.
Video camera accessory – option to work coaxially with the measurement axes.
Optical accessories – capability to work with periscopes, telescopes, and other relay optics.
OPS – Position Synchronization – a special firmware module embedded in the sensor’s electronics which records encoders output and synchronizes the accurate position of up to 3 system axis together with the sensor measurements.
PSRB – semi-translucent material scanning – special calibration of the sensor for measurement on semi-transparent materials such as dental impression, wax and plastic materials.
Number of axes : 3D
Applications : profile, measurement
Technology : laser, optical, conoscopic holography
Configuration : compact
Other characteristics : high-precision
Length : 140 mm (6 in)
Width : 79 mm (3 in)
Measuring distance : Min.:
