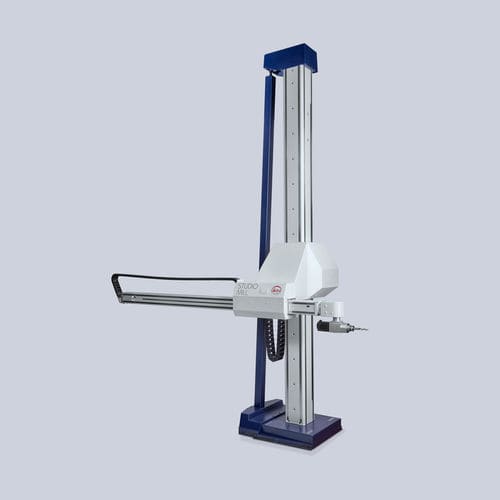

The Studio Mill 4 is aligned especially to the needs of the design industry und offers you the possibility to work with soft materials, such as clay, styrofoam, rigid foam and flexible foam without any problems. The Studio Mill 4 can be used as a 3-axes or a 3+2-axes milling machine. A stable machine concept connected with high flexibility and a maximum of insensitivity to dirt distinguishes the Studio Mill 4 for working in the design area. Furthermore, a maximum of processing volume is available because of the special arrangement of the processing axes. Various milling heads plus powerful software packages for digitization, measuring and milling render your Studio Mill 4 to a universal centre in design industry and modelling.
The Studio Mill 4 is available as a single version and a duplex version.
Probe Systems
Studio Mill 4 is compatible with various probe systems:
•PH6 fixed probe head
•PH10T motorised indexing probe head
•PH10M motorized indexing probe head
•TP20 probe system
•TP200 probe system
•Alternative probe systems on request
•Optical 3D sensors on request
•Change racks for our probe systems on request
Rotating and swiveling heads / milling spindles
•2-axes rotating and swiveling heads for manual use
•2-axes rotating and swiveling heads completely automated
•Milling spindles with collet adapter up to Ø 20mm
•Milling spindles with quick change system and collet adapter up to Ø 20mm
Options
•Passive shock absorption or active shock absorption / pneumatic
•Active temperature compensation in all axes incl. workpiece
Handbox
•Cable handbox
•Wireless handbox
Software
•Inca3D software options
•Customer specific software training
Number of axes : 3-axis
Spindle orientation : universal
Other characteristics : automatic, precision
Y travel : Min.:
Z travel : Min.:
