Cost-effective machining and intuitive control = servo-conventional
• – Travel X-axis 1.300 mm
• – Travel Y-axis 290 mm
• – Travel Z-axis 450 mm

Details
Conventional milling, now easier, more precise and more efficient due to integrated electronics

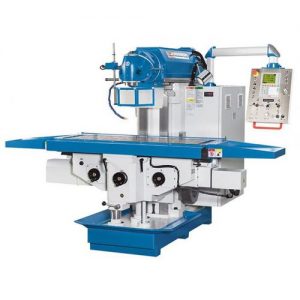

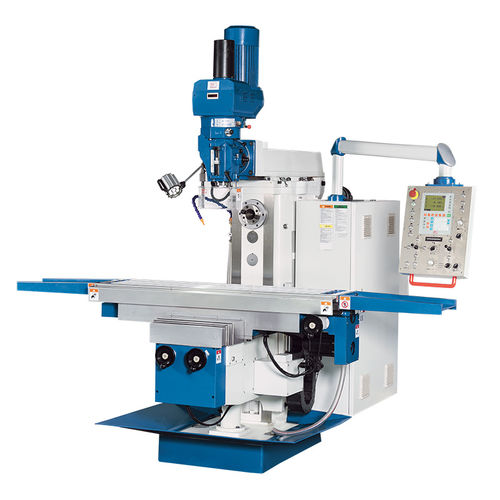

• – The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
• – This machine features a user-friendly design, significantly higher precision and increased machining capacity
• – Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability
• – Rigid frame design with wide guideways and travels
• – Servo-conventional drives on all axes, infinitely variable with fast rapid feeds, synchronized with spindle speed
• – Preloaded ball screws on X, Y and Z ensure high precision, low maintenance and low wear
• – All gears and guideways are hardened and ground
• – Swivelling vertical cutter head, pneumatic tool clamping and powerful 5.5 kW motor
• – 2 gear steps for a wide speed range, infinitely variable up to 5000 rpm, and high torque at the spindle
• – Horizontal spindle motor with 7.5 kW

Servomill – Highlights
• – Control developed and built in Germany
• – Positioning control for traveling pre-selected paths on all axes
• – Constant cutting speed with feed speed based on spindle rpm
• – Zero backlash preloaded ball screws
• – Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
• – Electronic spindle load indicator
• – Electronic hand-wheels on all axes
• – X, Y and Z axis movement via joystick technology
• – Integrated position indicator with precision glass scale

Number of axes : 3-axis
Spindle orientation : universal, horizontal
Other characteristics : automatic, high-precision, rigid
X travel : 1,300 mm (51 in)
Y travel : 290 mm (11 in)
Z travel : 450 mm (18 in)
Power : 5,500 W, 7,500 W (7 hp)
