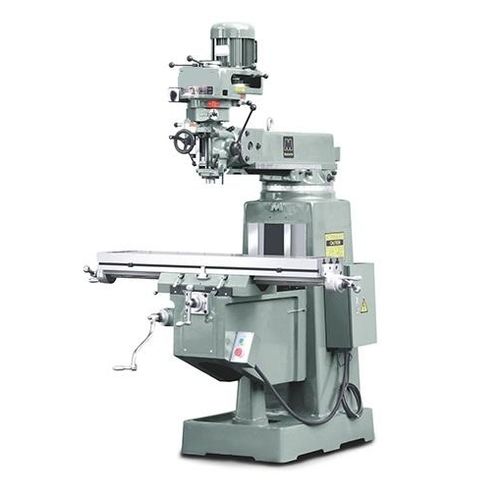

3-axis milling machineM3E(X6325A)

Table size – 10″×50″/10″×54″
Longitudinal travel – 900/810 with power feed
Cross travel – 380
Certical travel – 360
T-slot No. and size – 3×16
Ram travel – 520
Distance from spindle nose to table surface – 50-410
Spindle hole taper – Standard:R8 Optional:ISO30/ISO40
Spindle travel – 127
Spindle speed – Standard:shiftgrade 50Hz:65~4500RPM 60Hz:80~5440RPM
Standard:shiftgrade 50Hz:65~4500RPM 60Hz:80~5440RPM
Auto. quill feed – Three steps:0.04(0.0015″)/0.08(0.003″)/0.15(0.006″)mm/revolution
Spindle motor – 2.25Kw/3HP
Head tilting – 45°
Head swivel – 90°

Number of axes : 3-axis
Spindle orientation : vertical
X travel : 810 mm, 900 mm (32 in)
Y travel : 380 mm (15 in)
Z travel : 360 mm (14 in)
Power : 2 kW (3 hp)
