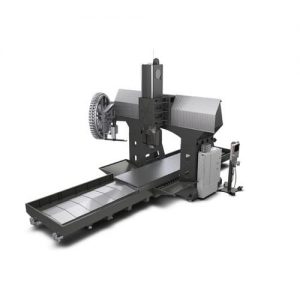

3-axis milling machineCONTOUR

Milling machine for machining contour of profiles in PVC, pre-cut at 45° on both sides. The machine, integrated into the window/door production process with FUSION series Emmegi machines – equipped with Seamless technology counterblocks – contours the profiles, preparing them for the next welding phase with seamless finish. CONTOUR features two electrospindles that operate at the same time on the profile ends. The profile feeding and unloading takes place through the front and rear belt loading tables that enable continuous operation, in step with subsequent processes. Programmable on board machine or through office software, it imports and automatically carries out the default and optimised machining lists.

Number of axes : 3-axis
Spindle orientation : horizontal
Other characteristics : for profiles, for PVC, for windows and doors
X travel : 3,350 mm (132 in)
Y travel : 190 mm (7 in)
Z travel : 130 mm (5 in)
