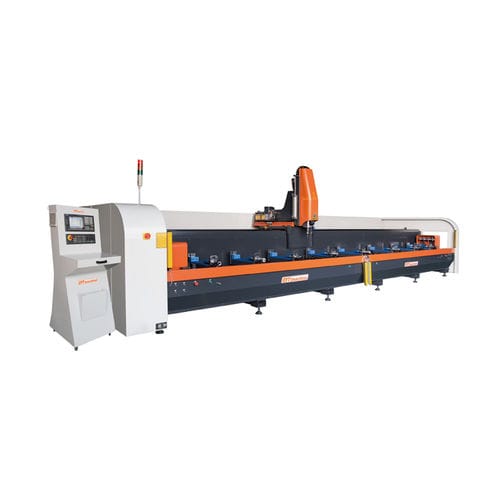

It adopts German design idea and is suitable for the drilling, milling, cutting, end
face cutting of aluminum alloy section bars and nonferrous materials.
With the imported system and the human-machine interaction function, it is
easy to operate.
It has a high-speed motorized spindle, a 8-station tool magazine and the
automatic tool changing function.
It has high-precision servo motors, ball screws, linear guides and bearings
INTRODUCTION
All main parts of the machine are imported parts of famous brands. It is suitable for the drilling, milling and cutting of nonferrous materials such as aluminum alloy and copper materials. It is equipped with angle heads and can conduct machining at any angle within ±90°.
The machine boasts high precision, convenient operation methods and high efficiency.
技术参数 PARAMETERS
加工长度 / Machining Length 6000mm~12000mm
加工宽度 / Machining Width 300mm
加工高度 / Machining Height 300mm
重复定位精度 / Repeated Positioning Accuracy ±0.05mm
主轴功率 / Spindle Power 9.5KW
主电机转速 / Rotating Speed of the Main Motor 0~24000r.p.m
工作电压 / Working Voltage 380V/50Hz
工作气压 / Working Air Pressure 0.6-0.8mpa
加工精度 / Machining Precision ±0.1mm/m
Number of axes : 3-axis
Spindle orientation : vertical
Structure : gantry, column type
Machined material : for aluminum, for wood, for plastics
Applications : for drilling, heavy-duty, for automatic tool changers, for heavy-duty machining, drilling, for window and door frames, for aluminum profiles, for windows and doors, cutting, for molds
Other characteristics : high-speed, milling, precision, high-speed, automated loading/unloading
X travel : Min.:
Y travel : Min.:
Z travel : Min.:
Rotational speed : Min.:
Power : Min.:
