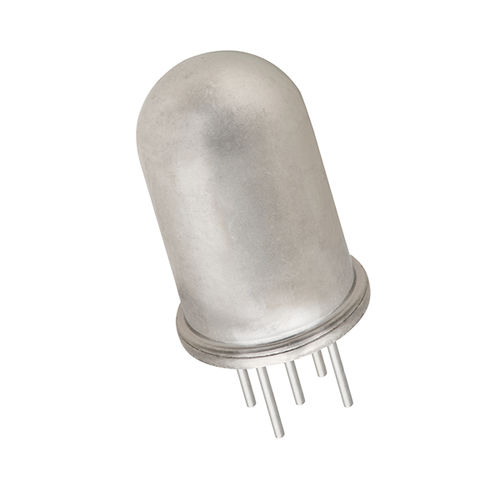

The 0717-4318-99 and 717-4319-99 Models are electrolytic dual-axes tilt sensors developed by The Fredericks Company. They are built with rugged metal construction ensuring durability and maintaining superior tolerances. These units also offers an exceptional response time and highly repeatable output over a wide temperature range.

The 0717-4318-99 Model is built with compliance to RoHS directive requirements. The framework features ±60° operating range, ±25° linear range, <0.1° repeatability, and <0.003° resolution. The 0717-4319-99 Model is built with compliance to RoHS directive requirements. The framework features ±50° operating range, ±20° linear range, <0.1° repeatability, and <0.003° resolution. The typical application of these products includes positioning and leveling of construction equipment. In addition, these sensors can be paired with any Fredericks signal conditioner. Number of axes : 2-axis Output : analog Technology : electrolytic Inclination : Min.: Resolution : 0.003 °
