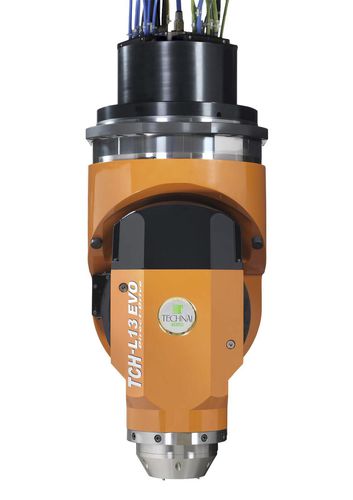

Compact and light, the TCH-L13 EVO has a monolithic structure in molded aluminium and weighs only 290kg. It uses a spindle with a HSK 63 tool interface; 22kw maximum power, 32 Nm of torque and a rotation speed of 20.000 rev/min.
The Technai TCH-L13 head is designed to excel in performance finishing of sculptured surfaces, such as molds and other parts in steel, aluminium and composite materials from which the manufactorer requires dynamic services and maximum precision.
The dynamics of the two rotary axes are based on the use of “torque” motors that enable tool paths to be traced with ten times more precision than the heads with servo motors and mechanical gears.
The head is made with geometric quality of the highest standard: the offset of the plan drawn in the spindle rotation with a pivot radius of 500mm has an allowed tolerance of just ± 20 micrometers.
The TCH-L13 head is proposed by Technai Team with the objective of offering a product that is well industrialized, reliable and competitive and that aims to establish a benchmark in the market.
Number of axes : 2-axis
Other characteristics : right-angle, CNC, continuous, for heavy milling, for hard-to-reach areas
