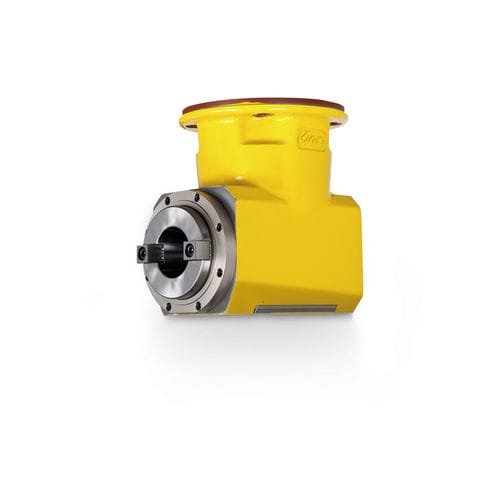

2-axis milling head

Manual 90° Milling Head

Maximum Torque – 1000 – Nm
Maximum RPM – 2000 – rpm
Rotating Direction of Spindle – Clockwise –
Tool Type – MAS 403 BT-50 –
Pull Stud – MAS 403 P50T-1 –
Tool Specification – BT – #50 –
Model Type – GMA1 –
Ratio – 1：1 –
Minimum Horsepower – 38kW –
Maximum Tool Diameter – Ø150 – mm

Number of axes : 2-axis
Other characteristics : angle
