Project description

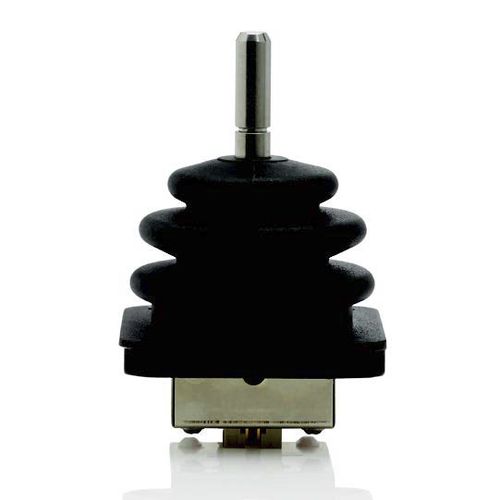

Use of contactless Hall technology in the joystick is suitable if limited installation space is available or the application is subject to high vibration. The JX-5 2-axis joystick fulfi lls these requirements to a high rate. The trusted durability of the JX-xx joystick series is also guaranteed with the JX-5. The applications are extensive and range from rehabilitation engineering and automation technology to construction equipment and marine applications.

MATERIALS
Base Aluminium
Bearing Stainless steel/plastic

ELECTRICAL SPECIFICATIONS
Operational voltage 5 V ± 0,5 V
Output signal 0,5 … 4,5 V
Linearity ± 3%
Deflection angle, el. ± 19°
Power consumption < 20 mA Max. output current ± 8 mA Resolution 16 bit Option Redundant output signal Electrostatic discharge BS EN 61000-4-2 Radio interference BS EN 61000-4-3 High-frequency interfering signals BS EN 61000-4-4 Conducted interfering signals BS EN 61000-4-6 Radiated emission EN 55016-2-3:2010+A1:2010 Technology : 2-axis Applications : for marine applications, for off-highway vehicle Other characteristics : rugged, with buttons
