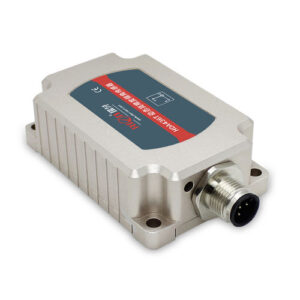

Inclinometer (MODBUS RTU Protocol)
●Single/dual Axis Inclinometer
●Measuring Range :±1～±90° optional
●Wide voltage input: 9～36V
●Wide temperature working: -40～+85℃
●Resolution: 0.001°
●IP67 protection class
●Highly anti-vibration performance >100g

General Description

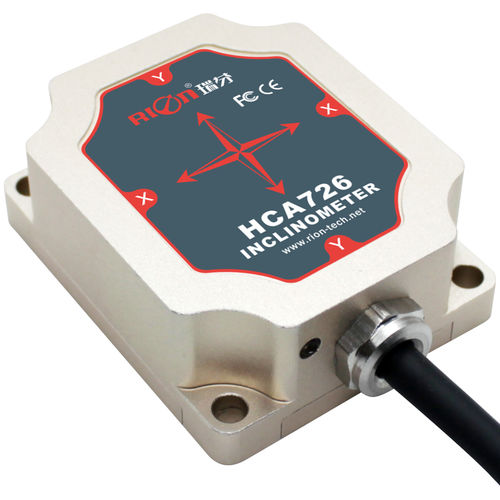

HCA716S/HCA726S is a small volume high accuracy inclinometer launched by RION company to the industrial field control , using RS485/RS232 Serial interface , MODBUS RTU standard protocol format .Built-in high-precision 24bit A /D differential converter, by 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt.The product integration of the latest technology to the main MEMS tilt unit, measuring range of +-180 degrees, full range accuracy of 0.01 degrees, can easily achieve biaxial and uniaxial inclination measurement .The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. The utility model is suitable for the control of the angle of the photovoltaic cell board, the orientation of the photovoltaic cell board, the measurement of the angle of various thermal power generation mirrors, and the large range high precision measurement of industrial sites.

Number of axes : 2-axis
Output : RS-485, RS-232, CAN, Modbus, CANopen, voltage output, 4-20 mA, TTL
Technology : MEMS
Other characteristics : rugged, high-precision, high-resolution, for geophysics applications, with aluminum housing, economical, shockproof, waterproof, wireless, agriculture, for the construction industry, for dumpers, temperature-compensated, geotechnical, with LCD display, dynamic, drillship, for boreholes, for PCB, with digital display, miniature, for solar trackers, concentrated solar power, IP67, for angle measurement, for cranes, for pipe jacking machine, with gyroscope
Inclination : Max.:
Resolution : 0.001 °
