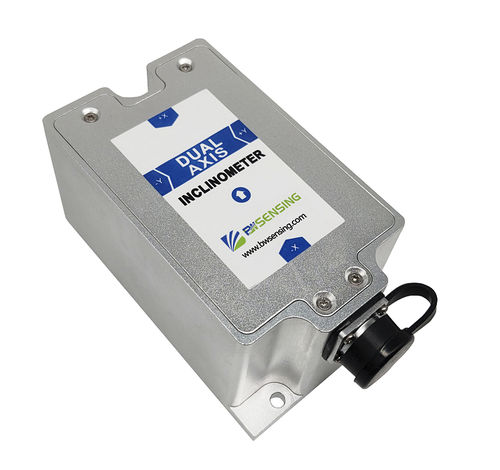

2-axis inclinometerBWS5000E

BWS5000E is a dual-axis high-precision tilt sensor with MEMS technology and digital output launched by Bewis Sensing Technology LLC. It has a measurement range of ±15°, a maximum accuracy of 0.001°, and a temperature drift of 0.0003°/℃.

Technical Specifications
Accuracy: 0.001°
Resolution: 0.0001°
Measuring axis: X-Y
Measuring range: ±15°
Power supply DC: 10-35V
Output type: RS485/232/TTL optional
Wide operating temperature: -40℃~+85℃
Store temperature: -55℃~+100℃
Zero temperature drift: ±0.0003°/℃
Electromagnetic compatibility: According to GBT17626
Shock resistance: 2000g, 0.5ms, 3 times/axis
Weight (g): 320 (metal plug)/350 (aviation plug)
Electrostatic discharge (ESD): IEC 61000-4-2 Level IV Contact discharge 8KV, air discharge 15KV
Fast transient burst immunity: IEC 61000-4-4 IV level
Surge (impact) immunity: IEC 61000-4-5 Class IV

Number of axes : 2-axis
Output : digital
Technology : MEMS
Other characteristics : high-precision
Resolution : 0.0001 °
