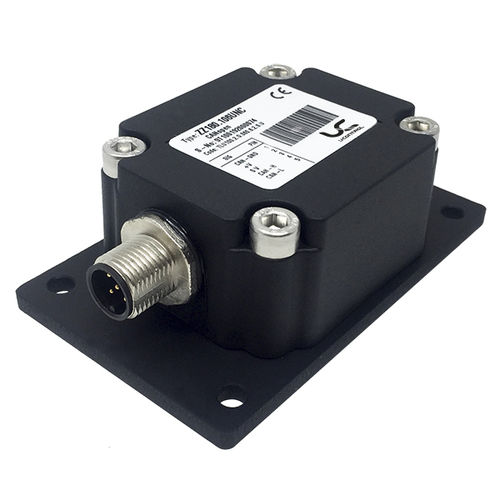

2-axis inclinometer106UNC

106UNC is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology).

Utilizing gyro-compensated MEMS technology, the sensor position signal is instantaneous with no delays and has a static excellent linearity.

106UNC is suited for applications (cranes, aerial platforms, drilling machines and excavators) in harsh environments which are exposed to motion, shock and vibration, especially for mobile machines.

>MEMS technology
>High protection level IP67 and wide temperature
>Range from -40°C … +85°C
>Stable accuracy over whole temperature range
>Resolution up to 0,01°
>Double axes ± 90°

Number of axes : 2-axis
Output : CAN Bus
Technology : MEMS, capacitive
Other characteristics : IP67
Inclination : 90 °
