Overview

Precise inclination measurement and vibration analysis in one device (can be switched via IO-Link)
for mobile & industrial applications
excellent accuracy, high sampling rate and parameterisable vibration suppression
2x programmable normally open / normally closed & analogue output
Protection rating IP65/ IP67/ IP68/ IP69k

Description

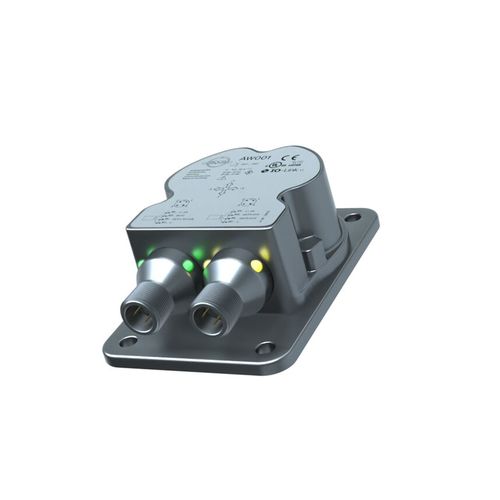

The inclination sensor AW001 combines precise inclination measurement and vibration analysis in one device. Excellent accuracy, high sampling rate and configurable vibration suppression enable universal use in standard mobile and industrial applications. The high IP69K protection rating ensures use in extremely harsh environments.

Inclination measurement is possible across a ±180°measuring range in two axes. The sensor has a compact housing with two M12 connectors for electrical connection. The left connector provides two separate switching outputs for the X and the Y-axis, while the right connector offers two 4…20 mA analogue signals for measuring in both directions. The sensor can optionally output the measured values via an IO-Link interface, which is also used to program the sensor. The operating mode of the sensor can be switched to vibration measurement via IO-Link and monitor the status of your machine.

Number of axes : 2-axis
Output : analog, IO-Link
Other characteristics : IP67, IP68, IP69K
Inclination : Max.:
Resolution : 0.05 °
