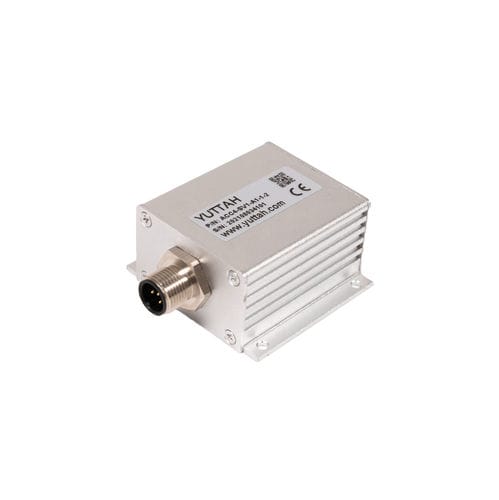

The sensor ACC4 is a precise acceleration sensor, using MEMS technology. The ACC4 provides single-axis, 2-axis. And 3-axis acceleration measurement. The sensor is available with Analog and Digital output options.

Technology

– High-precision acceleration sensor
– MEMS technology
– Non-contact working principle
– Available with many measurement-range options.
– Available with Analog and digital outputs
– Easy mounting and direct application

Specifications

– Measurement range: 1-axis, 2-axis, and 3-axis

G Ranges: ±2g, ±3g, ±5g, ±10g, ±25g, ±50g, ±100g, ±200g, ±400g

– Output options:
Analog: 4 – 20 mA, 0.5 – 10 V, 0.5 – 5 V
Digital absolute: CANopen, RS485 Modbus
Other Outputs: On request
– Accuracy: ±0.5% F.S
– Supply Voltage: Flexible 9 – 36 V or 5 V ±5%
– Excitation Current: max. 30 mA
– Protection Class: IP67 / IP69
– Operating Temperature: -40 °C to +85 °C
– Housing: Anodized Aluminum
– Mounting: M3 bolts
– Weight: approx. 220 grams

Advantages

– High precision
– High robustness and resistance against shocks and vibrations
– High protection class
– Non-contact technology
– Wear-free and maintenance-free
– Long lifetime
– Easy mounting and direct application
– Design flexibility

Applications

– Industrial Applications
– Bridge monitoring
– Industrial Vehicles
– Communal Vehicles
– Material Handling
– Forest and Agriculture Machines
– Heavy duty applications
– Power and Energy
– Medical
– Other Applications

Number of axes : 2-axis, single-axis, 3-axis
Technology : MEMS
Other characteristics : industrial, IP67, analog, digital output
Frequency : Min.:
