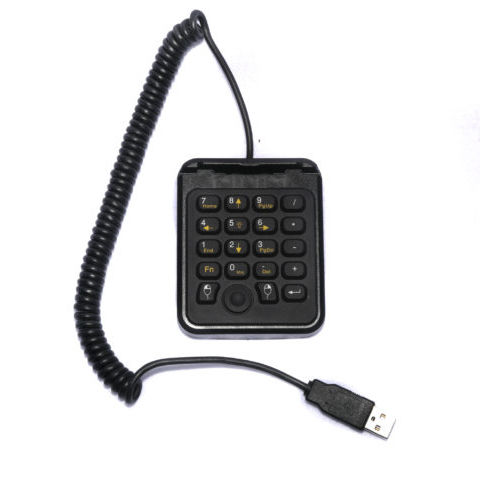

IK-170 is designed by iKey® for integration into wearable technology. This rugged numeric pad replaces previous versions of KYB-170. Ideal for high volume data entry.
This 17-key, ultra-compact keypad utilizes sequential key presses to access numeric characters.
In addition, it includes an integrated Force Sensing Resistor (FSR) pointing device and multiple levels of backlighting, optional NVIS Green B. Built for use in harsh areas, the IK-170 is sealed to NEMA 4X specifications when properly sealed and is designed to meet MIL-STD-461E requirements for radiated susceptibility.
Features:
Integrated Backlighting
Integrated FSR pointing device
Slim, Compact Design
USB configurations available
Wearable design
ADDITIONAL SPECIFICATIONS
SHOCK – 3×11 ms pulses of 50g on each of 3 axes
KEY SWITCH – MATERIAL: Industrial silicone rubber LIFE: Greater Than 10 Million Cycles
TRAVEL – 0.055 in. ACTUATION FORCE: 8.11 oz +/-1.06 oz. (230g +/-30g) FEEDBACK: Tactile with Mechanical Snap
VIBRATION – POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz – 2 kHz
DURATION OF TEST PER AXIS – 3 hours
POWER – USB: 170 mA@5V from CPU port
TEMPERATURE RANGE – STORAGE: -35C to +85C (-31F to 185F) OPERATING: -20C to +70C (-4F to 58F)
WARRANTY – One year warranty
HUMIDITY – 100%
DIMENSIONS – 1.82″ x 2.25″ x 0.44″ (w-h-d)
WEIGHT – 0.30 lbs +/- 0.10 lbs
Number of keys : 17-key
Mounting : benchtop
Material : silicone rubber
Other characteristics : compact, rugged, USB
