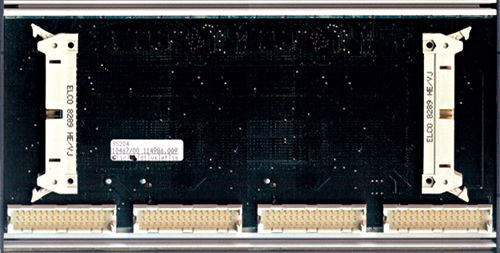

16+ slots backplaneBS200 series

1 to 16 module Slots
Seamless connection / possible
Stabile mechanics / compact design
Vibration proof fixing of modules
Can be snapped on EN 60715 DIN rail

The backplanes BS201 to BS216 interconnect the M1 controller hardware modules, such as power supplies, CPU modules and input / output modules, mechanically and electrically. They are the backbone of the controller. The DIN rail adapters S20x are mechanically identical in construction, without electrical function and they are used for solitary modules without backplane bus and supply.

Number of slots : 16+ slots
