– 16-port RS-232/422/485 serial communication
– Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
– Supports up to 976.5 kbps, and any baud rate setting
– Provides COM port redirection (Virtual COM), TCP and UDP operation modes
– Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
– Built-in 15 KV ESD protection for all serial signals
– SNMP MIB-II for network management
– Built-in buzzer for easy location
– Standard 1U rackmount size
– Rear wiring
– Automatic RS-485 data flow control

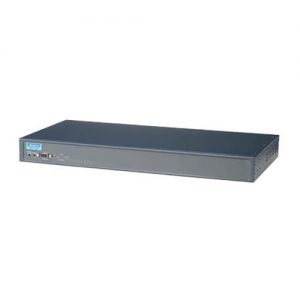

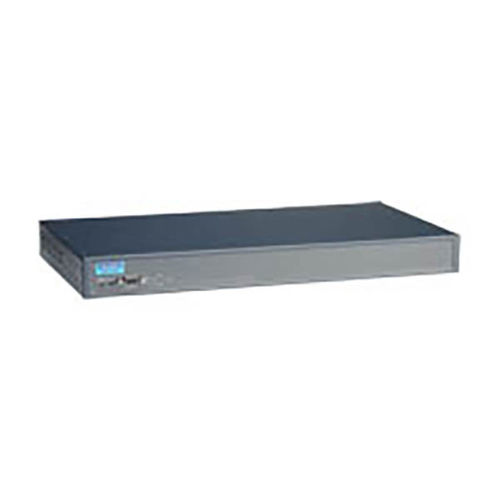

The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Bus : RS-232, RS422/RS485, RS-485, Ethernet, LAN
Output bus : RJ45, DB9M
Other characteristics : redundant, 16 ports, rack-mount
