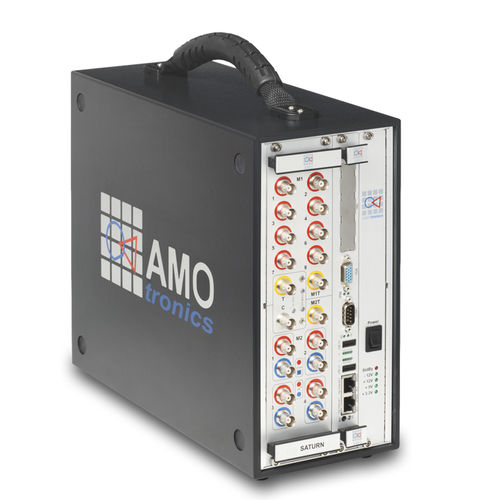

“Signal Averaging” is utilized in manifold applications in which the demand on resolution and accuracy cannot be reached due to random noise and a poor signal-to-noise ratio (SNR). If a repetitive signal is being acquired multiple times (several exactly triggered scans in a row) averaging of those scans can nearly eliminate single peaks and white noise while preserving the original signal shape, amplitude, phase, peaks etc. The SATURN FastScan Option makes use of this technology and implements it into the hardware logic of a SATURN Transient Recorder. This leads to a significantly enhanced resolution and improved dynamic range for use cases which require high acquisition rates.
Key Facts of the SATURN FastScan Option

Freely scalable sample rate up to 100 Megasamples/s per channel
18 bit ENOB @ 100MS/s
108dB resulting SNR
+/-100mV to 100V configurable input range
>80 MHz analog bandwidth (<3 dB) Up to 1 million triggered scans in a row with constant measurement period Minimum delay between single scans <2µs Freely configurable triggers 1 GB memory per channel for long recordings (1.28 sec/channel for 100MS/s) Up to 28 differential or single-ended channels 100% synchronous acquisition Number of channels : 16-channel, 104-channel, 32-channel, 56-channel, 144-channel Mounting : benchtop, portable, mobile, rack-mount, PC-based Applications : laboratory, for long-distance measurements Options and accessories : digital I/O, modular, multi-channel, high-resolution, with data recording system, Ethernet, field, analog input, multifunction, with fiber-optic transmission line
