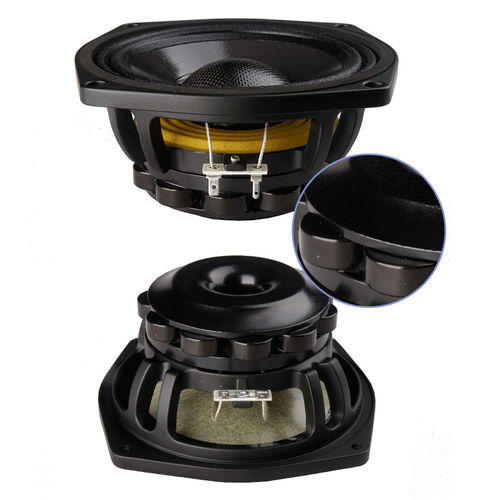

150W compression driverM065003

Nominal Diameter – 165/6 – mm/inch –
Rated impedance – 8 – ohm –
Power handing capacity – 150 – watts –
Sensitivity(1w/1m) – 95 – dB –
Frequency Range – FS-9000 – Hz –
Voice Coil Diameter – 50/2 – mm/inch –
Voice Coil Material – Copper Clad Aluminium – –
Number of layer – 2 – –
Kind of layer – outside

Resonance frequency – Fs – 90 – Hz
Dc resistance – Re – 5.3 – ohm
Mechanical factor – Qms – 3.44 –
Electrical factor – Qes – 0.24 –
Total factor – Qts – 0.23 –
BL factor – BL – 13.7 – T.M
Effective Moving mass – Mms – 14.61 – g
Effective Cas air load – Vas – 5.015 – liters
Effective piston area – Sd – 0.0131 – m^2

Overall Diameter – Φ186*161/Φ7.7*6.3 – mm/inch –
Bolt Circle Diameter – Φ172/Φ6.8 – mm/inch –
Bolt Hole Diameter – 4-Φ5.2/4-Φ0.2 – mm/inch –
Mount Baffle Cut-out – Φ145 /Φ5.7 – mm/inch –
Depth – 78.5/3.09 – mm/inch –
Net Weigh (6 unit) – 9.6 – kg –
Shipping Weight (6 unit) – 11.6 – kg –
Package Size (6 unit) – 550*190*220 – mm

Power : 150W
Applications : for industrial alarms
Magnet material : neodymium
Nominal diameter : 165 mm (6 in)
Power : 150 W
