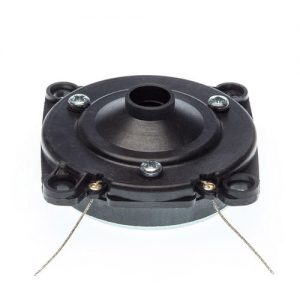

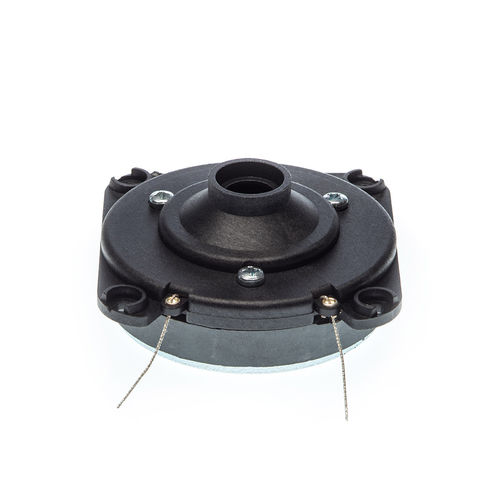

12W compression driverTRM23B

Small size ferrite transducer usable for applications where it is necessary reduced overall dimensions, suitable for horn speakers, alarm sirens and burglar alarms.

SPECIFICATIONS
THROAT DIMENSION:
ø12 mm

IMPEDANCE:
4-8-16 Ω
PHC (Power Handling Capacity):
8 W

PEAK POWER:
12* W

RESONANCE FREQUENCY:
1910 Hz

DIAPHRAGM MATERIAL:
PHENOLIC

VOICE COIL DIMENSION:
ø25,4 mm

MAGNET MATERIAL:
FERRITE

MAGNET SIZE:
ø60×7 mm

CASING MATERIAL:
PC

NET WEIGHT:
0,250 Kg

DIMENSIONS:
65×65×29 mm

CONNECTIONS:
wires, eyelets, lugs

Power : 12W
Applications : for horn speakers, for alarm sirens, for burglar alarms
Magnet material : ferrite
Other characteristics : small-size
Nominal diameter : 12 mm (0 in)
Power : 12 W
