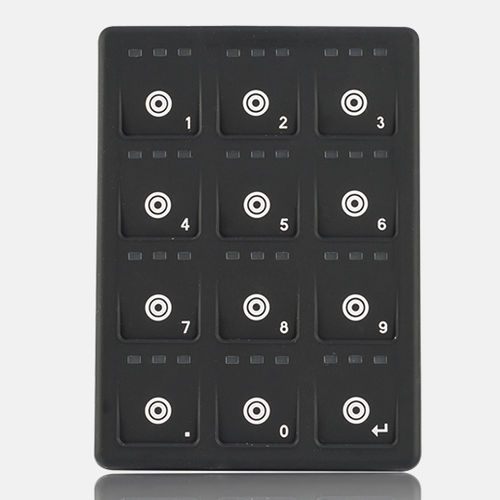

12-key keypadMO 405 H3X

MO 405 H3X Keypad

Type: 4×3 Key Combination
Lifetime: Up to 1 million cycles per key
Operating Temp.: -40C° … +85C°
Protection: Sealed to IP67
Supply Voltage: 8-32V
Supply Current: 70 mA at 24V (typical)
Overvoltage Protect.: Up to 36V

Features:

SAE J1939, CANopen and Modbus versions
Vibration and impact resistant
Dimmable LED indicators and legends
Up to 3 LED indicators per key
Programmable parameters

Options:

Custom legends and configurations available
Custom keytop legends
Indicators colors : Red (default)
Custom backlight colors : Blue (default)

Number of keys : 12-key
Mounting : panel-mount
Material : silicone rubber
Other characteristics : backlit, waterproof, weatherproof, for harsh environments, for access control, OEM, custom, CAN-Bus, CANopen, SAE J1939, IP67
