SBN provides the ultimate in flexibility – select from a wide range of pendant sizes and configurations to meet any application.

Control in the Palm of Your Hand

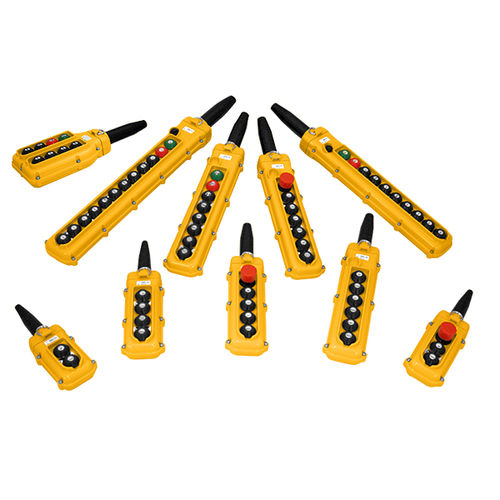

Featuring a lightweight, ergonomic design, SBN Pendant Pushbutton Stations provide optimal control and performance with less effort and fatigue than traditional pendants. This slim-line pendant rests comfortably in the palm of your hand and most models weigh under two pounds.

SBN is available in 2- to 12-button configurations; single, two or three speed designs, momentary, maintained on/off, or Emergency Stop; and with a variety of options and accessories. Both standard pre-assembled pendants and pre-wired pendants are available with minimal lead time.

Pendant Design
Single, two-speed, and three-speed button pairs feature mechanical interlocks for greater safety
External strain relief hardware relieves tension on individual conductors
On 6- to12-button models, a shrouded knock-out hole is provided for the installation of a pilot light or horn accessory
Polycarbonate
NEMA 4/4x rated
-5˚C (23˚F) to 40˚C (104˚F)

Switch Features
Elastic, chemically resistant gaskets ensure a tight seal between enclosure front and back
Pre-wired common circuit simplifies wiring of switches
Designed with visible contacts to ease wiring
Rated for 3 Amps, 250 VAC

Cable Features
Tapered round cable entry gland provides a watertight seal, while a slide-on rubber boot provides added water protection
Internal cable grip allows pendant to be serviced while hanging on cable
Resistant to UV, ozone, water, oil and weather
Available in 8, 12, 16, 24, 30 and 36 conductors
105°C (221°F) 600 VAC

Number of buttons : 12-button
Protection class : NEMA 4
