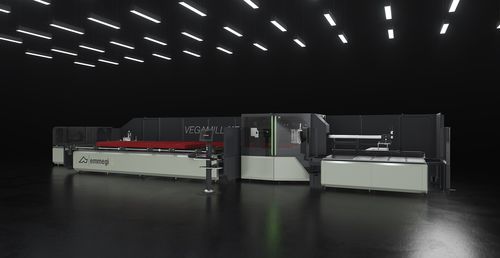

8- to 12-axis CNC machining and cutting-off centre, built for cutting, drilling and milling aluminium and light alloy profiles. Vegamill consists of four main units. Automatic belt loading magazine for profiles with a length of max. 7,500 mm. A high-precision and high-speed push-feed system with gripper for profile picking and conveying to a machining area. The adjustment of horizontal and vertical position of the gripper is manual; it can be optionally automated by means of an electronic positioning system on two controlled axes. The central machining unit with drilling and milling functions by means of 4-axis CNC and cutting unit, with widia blade. The cutting unit with 250 and 400 mm blade performs 90° cuts; in the version with 600 mm blade, it can perform cuts with an inclination of up to 22°30′ to the right and left, with the precision and efficiency of a brushless motor on CNC rotation axis with absolute magnetic band. The unloading unit may consist of a conveyor belt, ideal for short pieces such as brackets and hinges, or, alternatively, an unloading table equipped with an automatic extractor and an automatic tilting and translation system. The units making up VEGAMILL are protected by guards in such a way that they do not require additional enclosure guards, lending compactness and flexibility to this cutting-off and machining centre.
Number of axes : 8-axis, 12-axis, 10-axis, 11-axis
Spindle orientation : vertical
Machined material : for aluminum
Applications : cutting, drilling, for profiles
Other characteristics : milling, high-speed, high-precision, conveyor belt
X travel : 200 mm (8 in)
Y travel : 1,340 mm (53 in)
Z travel : 388 mm (15 in)
Rotational speed : 20,000 rpm (125,664 rad.min-1)
Power : 4 kW (5.44 hp)
