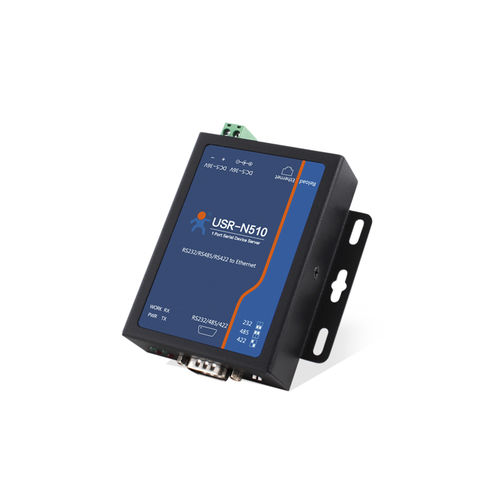

1 port Ethernet device servers USR-N510 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network.

● 1-port RS-232/422/485 Ethernet device servers
● Power supply accepts wide voltage input range DC 5-36V
● Support TCP server/client, UDP server/client,https client, Virtual COM
● Support Modbus RTU to Modbus TCP
● Support flow control CTS/RTS, XON/XOFF
● Support 1 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
● Configuration via Web Server page, AT commands, and Windows Utility
● MQTT/SSL special firmware (contact sales)
Introduction of Ethernet device servers USR-N510

1 port Ethernet device servers USR-N510 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network. Simple settings via webpage or setup software can assign working details.

Ethernet device servers USR-N510 are based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.

1 Serial Port Ethernet device server usr-n510 emc protection
Character of 1-port RS232/422/485 Ethernet device servers USR-N510
Industrial Solution – TI Cortex M4 Solution, work temp at -40~85C
Power Supply – DC/Terminal type 5V~36V
Serial Port – RS232/RS485/RS422, 3-in-1 serial port
Serial Signal –

RS232: TX/RX, CTS/RTS

RS485:A/B/G
Flow Control – Software: XON/XOFF
Modbus Gateway –

Modbus TCP to Modbus RTU in bi-directional

Modbus Polling
Advanced Character –

-Network Printing

-Web socket: Serial to Webpage

-Modify MAC

-Hardware watchdog

-ARP of server domain name
Certification – CE/FCC/RoHs/WEEE

Bus : RS-232, RS-485, RS-422, Ethernet, Modbus/TCP, Modbus RTU, Modbus
Output bus : Ethernet, RJ45, DB9, Modbus
Other characteristics : industrial, 1-port, IoT
