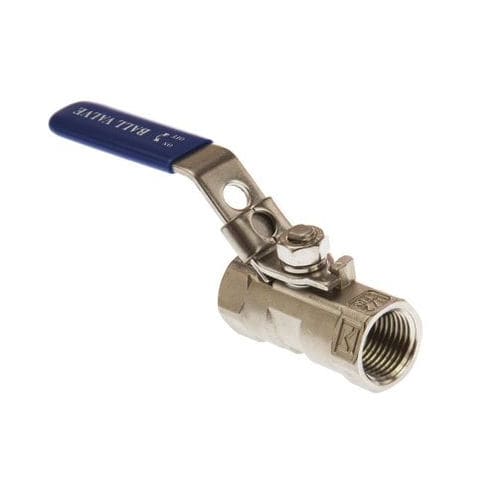

Introducing the RS PRO general purpose manual ball valve designed for industrial applications. Manual ball valves are used to operate shut off valves which control water flow and pressure.
Ball valves can be used for air, gases, water, steam, chemicals, petrochemical products, etc. These valves are simple to use, you move the handle by a quarter of a turn to open or close the valve. Stainless steel ball valves are used due to the materials resistance to corrosion and often found in aggressive environments.
Stainless steel – superior corrosion resistance, ideal for demanding applications with high temperatures
Suited to higher pressure and temperature applications
W.P: 1000 WOG (Water, Oil, Gas rating for the value) (PN63)
Investment casting
Blow-out proof stem – protects the operator
Anti-static device (option)
Locking device
Thread type: ASTM B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226
Materials:
Body, Retainer and Ball – ASTM A351-CF8M and ASTM A351-CF8
Seat A & B – PTFE/RTFE
Stem – AISI 316
Thrust Washer & Packing – PTFE
Gland Ring, Spring Washer, Stem Nut – AISI 304
Handle – Stainless Steel
Handle Sleeve – PVC
Locking Device – Stainless Steel
Typical Applications
Manual quarter turn ball valves are available in various sizes to meet a range of applications. They feature a manual hand lever and can be made from brass, stainless steel and plastic. Ball valves are popular as they are reliable and durable and still close securely over long periods making them suitable for shutoff and control applications.
Applications include:
Heating systems
Water treatment
Gas flow control
Liquid flow control
Type : ball
Operation : lever
Function : control
Media : for water, for oil, for gas
Body : 1-piece, stainless steel
Number of channels : 2-way
Other characteristics : high-pressure, quarter-turn
Temperature : Min.:
Pressure : 68 bar (986.3 psi)
DN : 15 mm (0.591 in)
