1-channel digitizer

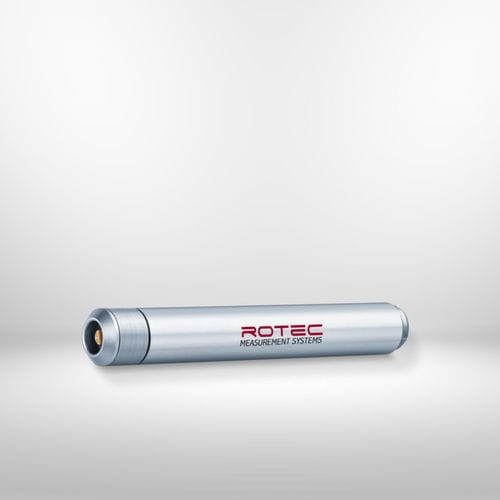

Inline TTL digitizer

You can use the compact Inline TTL digitizer as a measuring amplifier in combination with the speed sensors and the speed measurement card . It is equivalent to the sensor electronics, but its weight and functional range are optimized for mobile measurements.

Tooth frequency range
0,1 Hz to 20 kHz
Input
+/- 50 V (4-pol Lemo)
Output
TTL (8-pol Lemo)
Pulse width
10 ns
Minimal sensitivity
5 mV
Operating temperature
-20°C to 50°C

Number of channels : 1-channel
