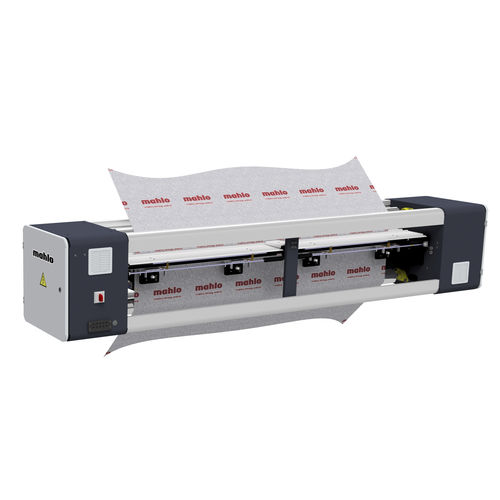

The Orthopac FMC EP is a compact bridge only with optical scanning system. It fits in easily even under tight space conditions and can control external weft straighteners.

BOW AND SKEW DETECTION AND CONTROL

The Orthopac FMC automatic straightener is the heart and core of the Orthopac. The device consists of an optical scanning system and electronic control for distortion correction.

It is used primarily to detect and log residual distortions in the exit end of a system, e.g. with the stenter. Thread density can be determined at the same time. It can also be connected to external straightening machines then serving them as control unit.

PRODUCT HIGHLIGHTS
• Optimized optics ensure maximum possible resolution of the angle of distortion
• Direct, instantaneous signal processing determines the angle in a trice
• Optimized back and incident lighting

CUSTOMER BENEFITS
• Broadest scanning spectrum on the market
• Simple, intuitive operation
• Automatic scanning even of the most complex product structures

Broadest scanning spectrum on the market
Simple, intuitive operation
Automatic scanning even of the most complex product structures
Skewing of the product during manufacture alters the structure of textile webs. A distorted product depreciates in useful value, affects subsequent processing and invites complaints.

The integrated optical distortion detection Orthopac FMC is capable of handling the variety of usual colours, print and Jacquard patterns as well as surface structures such as pile and loop.

Number of axes : 1-axis
Applications : for measuring, for detection, for quality control, for textiles
Technology : optical
Configuration : compact
Other characteristics : automated
