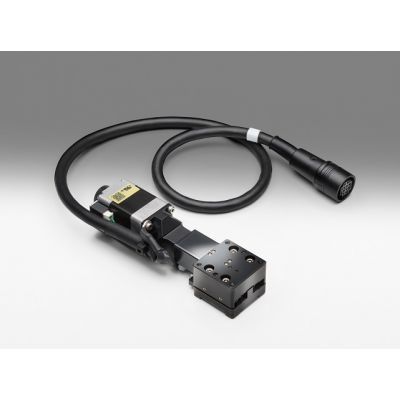

Small table size stage with stepping motor. The table size is 25x25mm. Ideal for production and experimental applications require significantly smaller size.
◦X-axis, Z-axis, Rotation and Goniometer available.
◦High precision stepping motor is used to achieve precision positioning.

Name:Small Motorized Single Stage
Weight:0.2500kgs
Guide
• OptoSigma’s standard controller and cables compatible.
• Please select D15RP-CA series or MINI-CA-SG series depending on the controller.
Attention:-
Travel:10mm
Load Capacity:19.6N (2.0kg)
Item Returns:This item can be returned
Stage Size:25×25mm
Feed Screw:Ball screw diameter φ3mm, 1mm lead
Positioning Slide:Crossed roller
Stage Material:Steel
Finish:Black chrome
Resolution (Full):2μm/pulse
Resolution (Half):1μm/pulse
Minimum Incremental Motion (reference):0.2μm
MAX Speed:10mm/sec
Positioning Accuracy:15μm
Positional Repeatability:3μm
Moment Stiffness / Pitch:10″/N･cm
Moment Stiffness / Yaw:10″/N･cm
Moment Stiffness / Roll:5″/N･cm
Lost Motion:5μm
Backlash:1μm
Parallelism:30μm
Running Parallelism:20μm
Pitch:100″
Yaw:60″
Sensor Part Number:Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor:Equipped (NORMAL CLOSE)
Origin Sensor:Equipped (NORMAL OPEN)
Proximity Origin Sensor:None

Orientation : XY, Z-axis, rotary
Type : motorized
Number of axes : 1-axis
Other characteristics : aluminum, precision, ball screw
Stroke : 10 mm (0.394 in)
Speed : 10 mm/s
