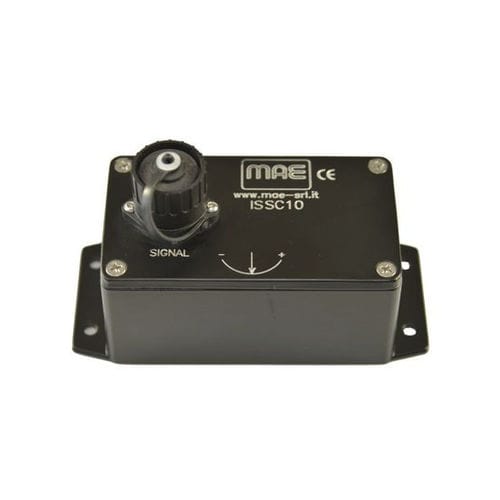

MONOAXIAL INCLINOMETER FOR STRUCTURAL MONITORING

Description
Monoaxial inclinometer sensro for statical structural monitoring based on magneto-resistive technology with resolution 0.01, housed in a case with IP-68 protection rate and equipped with 7 poles female AMPHENOL connector IP-68 protection rate. Sensor is supplied with aluminum bracket for installation on vertical / horizontal surfaces.

– SPECIFICATIONS –

– Resolution: 0.01 degrees

– Magneto-resistive sensor

– Angle: +/-10°

– Aluminium case

– Bracket for wall mounting

The different stresses and instabilities a building goes through over the years or the effects of deterioration of one or more structural elements, usually cause cracks which are visible on the walls surfaces and invisible inside them. The so-called cracking is usually generated by strong tractions or frictions that can either weaken or, in some cases, cancel the tensile strength of the building’s structural elements, causing in that way, more or less evident breakages with geometries that allow to trace the origin of the damage. Over the years the importance of both monitoring and continuous study through appropriate instruments for data acquisition and signal alarms, allowed to both monitor the building’s condition and provide a prompt signals warning in case of violation of the safety thresholds, singularly determined for each position or inclination sensor. The automatic management of the values reading of the sensors (where intervals and modes are set by the user), the ability to self manage local alarms connected to sirens, traffic lights etc.

Number of axes : 1-axis
Other characteristics : with aluminum housing
Inclination : 10 °
Resolution : 0.01 °
