BlueSYSTEM SIGMA – the ORIGINAL

BlueSYSTEM Sigma, the perfect inclinometer for measuring straightness, flatness, squareness as well as machine geometry

The BlueSYSTEM Sigma is the perfect measuring instrument to align machines and – together with the wylerSPEC software – for the measurement of straightness, flatness, squareness as well as machine geometry and machine rotations. BlueSYSTEM Sigma combines high accuracy (0.001mm /m = 0.2 arcsec) with the robustness required in the machine tool business. The user-friendly wylerSPEC software enables users to achieve the required accuracy of their machine and to record it afterwards.

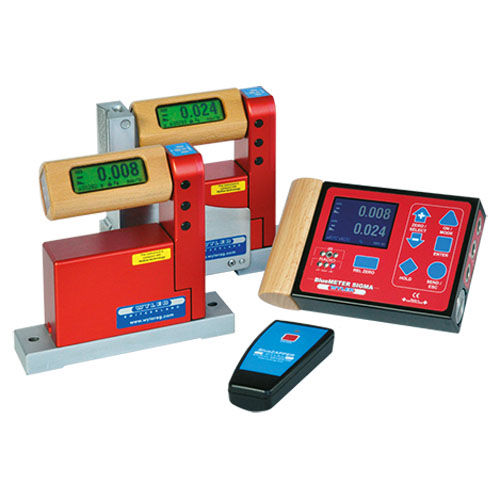

A BlueSYSTEM Sigma normally consists of two BlueLEVEL measuring instruments. Depending on the application – e.g. for the alignment of machines – a BlueMETER Sigma display unit is required. If the instruments are used together with wylerSPEC software, they are directly connected to the laptop via the wylerCONNECT.

For the most important and most typical applications, we put together several BlueSYSTEM Bundles. This simplifies choosing the optimal set for your application.

Some examples of applications with instruments of the BlueSYSTEM family in combination with the WYLER software wylerSPEC.
LINES / PARALLELISM
Measurement of straightness and parallelism

LINES / PARALLELISM with TWIST
Measurement of straightness and parallelism with twist

PERPENDICULARITY
Measurement of perpendicularity on machines or a granite measuring square

CIRCULR PATHS and CIRCULR PATHS WITH TWIST
Measurement of ring-shaped overlays consisting of one or two rings – with or without twist

Number of axes : 1-axis
Output : digital
Technology : capacitive
Other characteristics : high-precision, portable, wireless, with LCD display, high-resolution, temperature-compensated, with digital display, for angle measurement, for the construction industry
Inclination : Min.:
Resolution : 0.00005 grad
