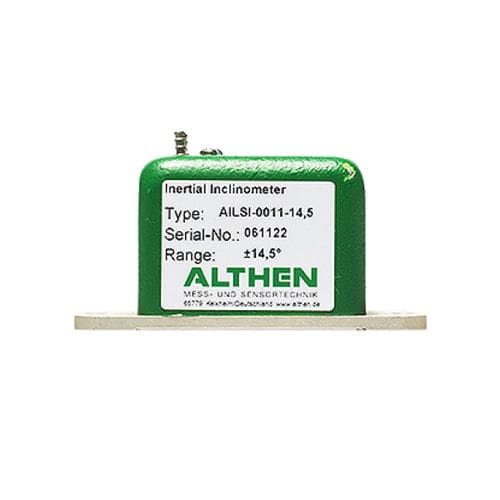

About the AILSI Servo-Inclinometer
The AILSI Series is a DC operated servo inclinometer with taut-band suspension that can be used for a wide variety of industrial applications. Versions are available in a choice of angular ranges and power supply options. Electrical terminations are via solder posts.

Key features AILSI
• Fully self-contained – connect to a DC power source and a readout or control
• device for a complete operating system
• High-level DC output signal proportional to sine of the angle of tilt

Applications AILSI
• Level control of machines and structures
• Safety control of cranes and lifting equipment
• Civil engineering studies
• Marine ballast transfer Systems

Specifications
Excitation voltage options
±15 VDC, +9 bis +36 VDC
Power consumption, max
1.2 W (±15 V version), 1.5 W (+9 bis +36 V version)
Full range output (FRO)
±5 VDC ±0.5%
Output noise (DC to 10 kHz), max.
2 μV/√Hz (±15 V version); 20 μV/√Hz (+9 bis +36 V version)
Non-linearity, max.
0.02 % FRO
Non-repeatability, max.
0.004 % FRO
-3 dB Frequency
5 Hz
Cross-axis sensitivity, max
1 % FRO
Zero Offset, max.
±0.050 VDC
Thermal zero shift, max.
±0.003 % FRO/K
Thermal sensitivity, max.
±0.01 % Reading/K
