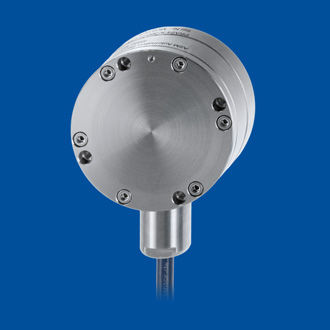

1-axis inclination sensorPTK4

For underwater applications
Measurement range up to ±180° (1 axis) or ±60° (2 axes)
Linearity up to 0.05°
Protection class IP68 (10 bar), continuous use

Specifications
Output – Voltage 0.5 … 10 V, 0.5 … 4.5 V
Current 4 … 20 mA, 3 wire
CANBUS
Measurement range – Up to ±180° (1 axis) or ±60° (1 axes)
Resolution – 0.05°
Linearity – Up to 0,05° (±30°)
Up to 0,1° (±60°)
Up to 0,2° (±180°)
Sensing device – Gyro-compensated MEMS device
Housing material – Stainless steel
Protection class: – IP68 (10 bar), continuous use
Connection – Cable output, standard length 2m
CANBUS: cable 0.3m with connector M12, 5 pin
Weight – Approx. 1,250 g (without cable)

Number of axes : 1-axis
Output : 0-10 V, 4-20 mA, CAN
Other characteristics : IP68
Inclination : Min.:
Resolution : 0.05 °
