• – Long service life and reliability thanks to the mechanics-free MEMS technology
• – The analogue output signals can be combined
• – with additional switching points
• – Tilt range up to ±60°
• – IP67 protection class
• – Operating range from -40 °C to +70 °C
• – Analogue current or voltage output, or volt free switching output via relay
• – Depending on the angle, resolution up to ≤ 0.04°
• – Adjustment of the neutral position possible
• – through remote control
• – Selectable switch-on and switch-off delay at the
• – switching output

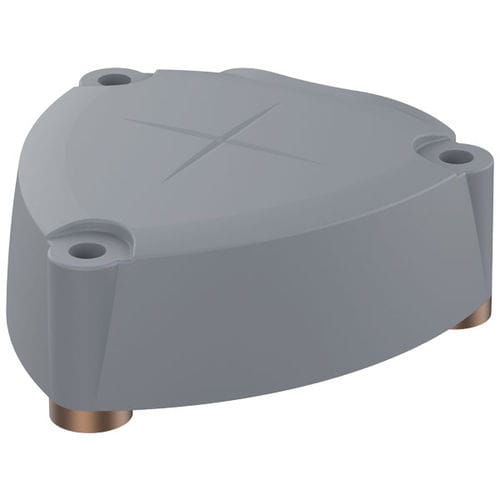

The robustly designed N3 tilt sensor has a high impact and vibration resistance so is frequently used for tilt measurement in construction machinery, industrial trucks and adverse industrial environments. The N3 tilt sensor also has a high resolution and repeating accuracy. It can be easily programmed and the neutral position adjusted with the corresponding infrared remote control.

Number of axes : 1-axis
Output : voltage output
Inclination : Min.:
Resolution : 0.04 °, 0.14 °
