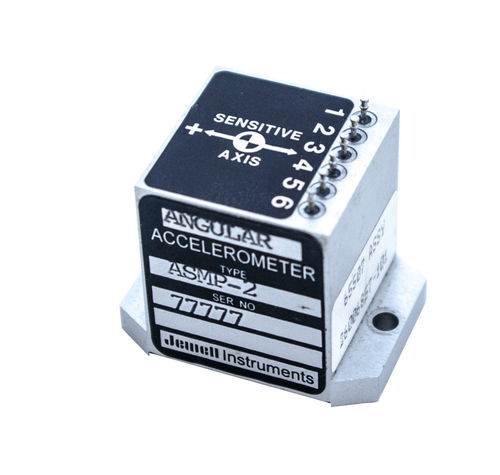

The Jewell ASM Series Angular Accelerometer is designed with a 1.05″ cube housing size structure that is capable to produce a ± 15 standard input voltage and a 200 Hz bandwidth. It can also produce an input that ranges from ±200.0 to ±1,000. The series is optimized to defer combination of miniaturization, high precision, and sturdiness. It is designed to lessen the thermal deterrents associated with outdoor applications. It can also work for fatigue monitoring, oil well drilling, flight control systems, automotive angular accelerometer testing, autopilot system testing, missile orientation, and antenna stabilization. It is considered to be an ideal device due to its quality and solidity.

Features & Benefits
• Bandwidth to 200 Hz
• 1.05″ Cube Housing Size
• ± 15 Standard Input Voltage
• Aerospace Quality and Reliability

Applications
• Fatigue Monitoring
• Oil Well Drilling
• Flight Control Systems
• Automotive Angular Accelerometer Testing
• Antenna Stabilization
• Autopilot System Testing
• Optical System Stabilization
• Missile Orientation
• Fire Control

Number of axes : 1-axis
Technology : shear
Other characteristics : angular
Frequency : 200 Hz
